.CXTF File Extension
Coordinates Exchange Text-Format File
| Developer | Stefan Gies |
| Popularity |
2.0 | 1 Vote |
What is a CXTF file?
A CXTF file is a vector graphics file saved in the Coordinates Exchange Text-Format (CXTF). It stores coordinate-based drawings made up of points, lines, polygons, curves, text, symbols, layers, colors, and other objects. CXTF files typically represent maps, technical drawings, or scientific graphics and are saved in a plain-text format, making the data easy for compatible applications and developers to read and process.
More Information
Stefan Gies developed CXTF as an open, platform-independent format for sharing vector graphics while keeping the data easy to read and edit. Cartographers, GIS professionals, engineers, scientists, and software developers may use CXTF files to exchange coordinate-based graphics between compatible tools.
Unlike many vector formats that store data in binary form, CXTF uses a structured text syntax with one command per line. This approach allows developers to process files programmatically, track changes in version control systems, and inspect or modify their contents with a text editor when needed.
CXTF organizes graphical objects into a hierarchical structure that supports groups, layers, and shared elements. The format supports both 2D and 3D coordinate data, along with styling information such as colors, gradients, line styles, and text formatting. External resources, such as images, can be referenced from a CXTF file or packaged together in a companion .CXZIP archive for easier distribution.
How to open a CXTF file

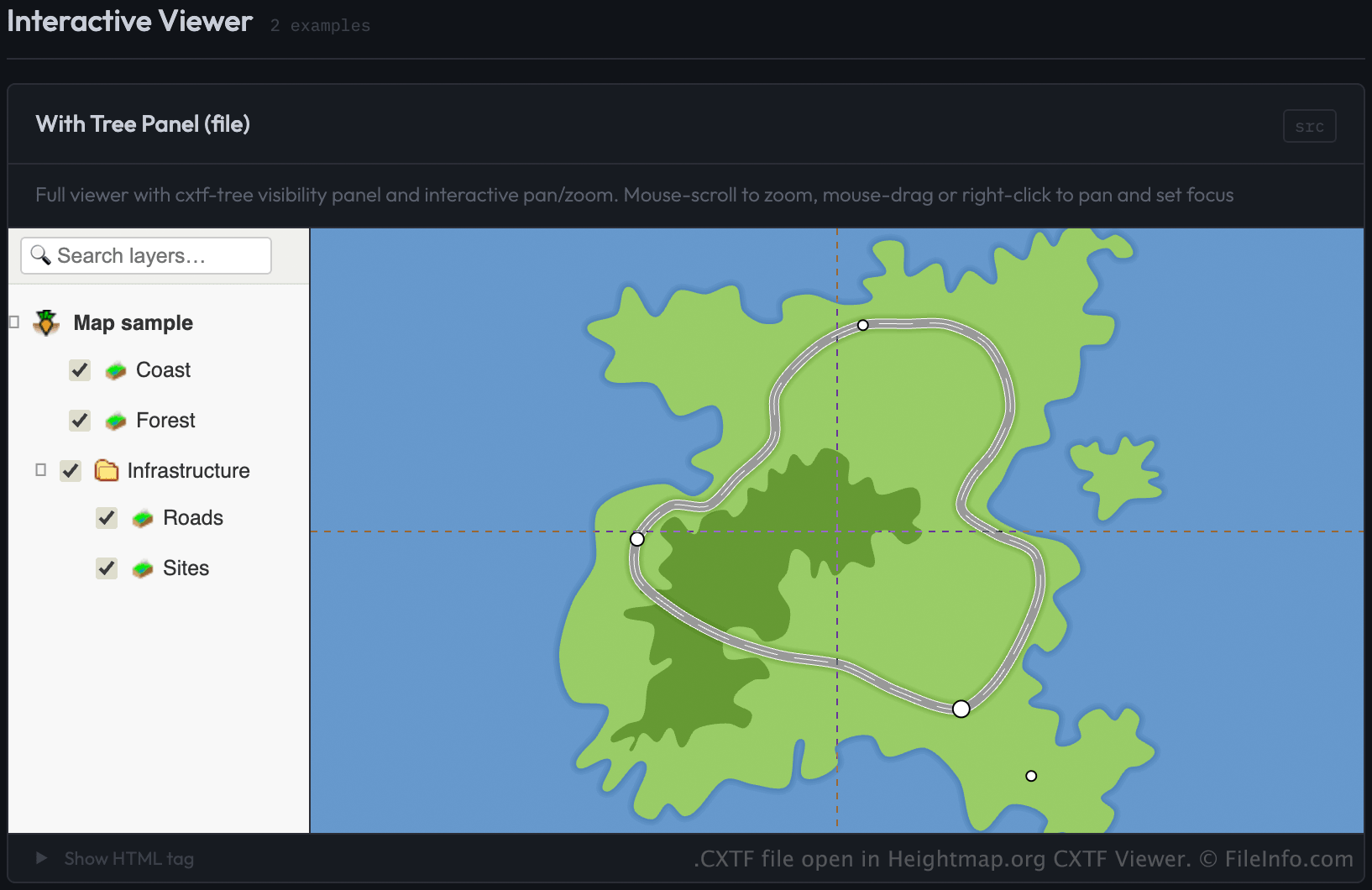

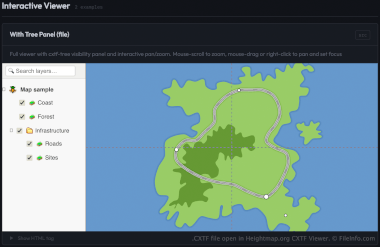

You can open CXTF files with the CXTF Viewer from Heightmap.org by loading the file through a webpage that uses the CXTF viewer component. The viewer displays the coordinate-based graphics in a web browser.
Developers can load CXTF files in the viewer by specifying the file as the source (src) of a
<cxtf-view src="examples/map.cxtf"
width="720"
height="360"
centered="true"
interactive="true"></cxtf-view>Since CXTF files are saved as plain text, you can also view their contents with a text editor, although a CXTF-compatible viewer is required to display the graphics correctly.
